Detail produk:
|
| Bahan: | Baja tahan karat dan Aluminium | Kualitas: | Kinerja Tinggi 100% Diuji |
|---|---|---|---|
| Aplikasi: | Sistem Pendinginan Mesin | Nama Produk: | Assy Pendingin Oli |
| Berat kotor: | 1.2kg | Sedang mengemas: | Kemasan Netral |
| Menyoroti: | Suku Cadang Mesin Mitsubishi 4d31,Suku Cadang Mesin Mitsubishi 4D32,26410-41013 |
||

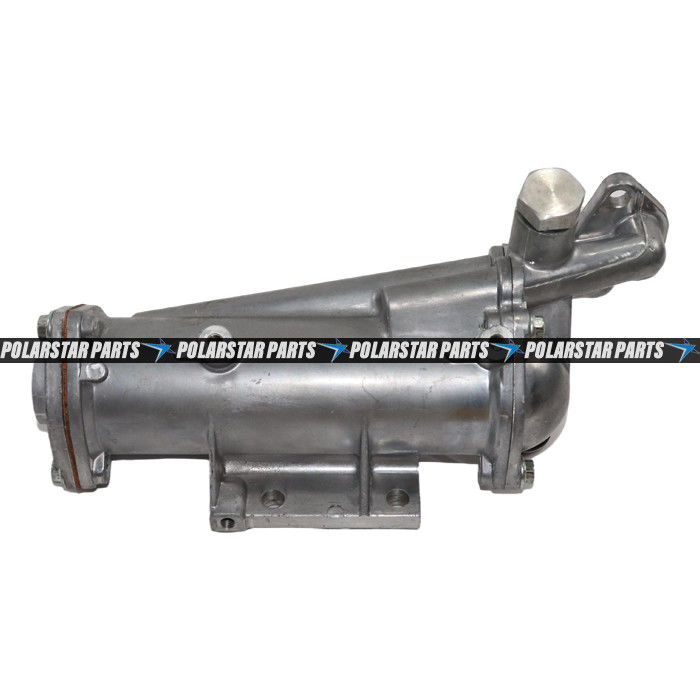

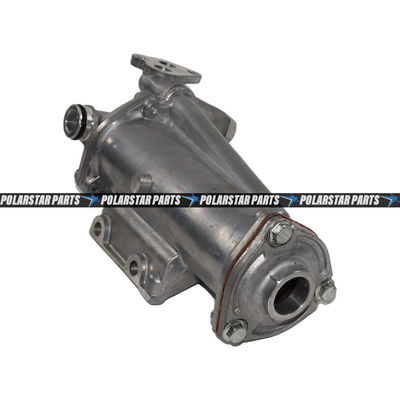

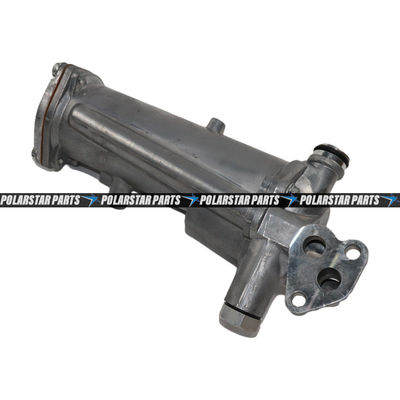

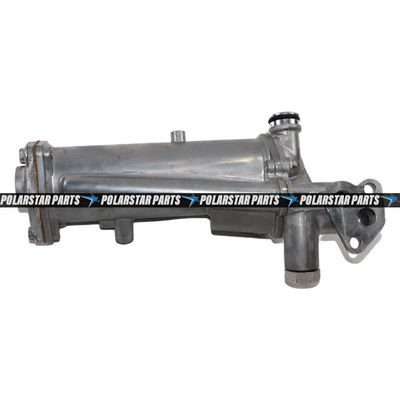

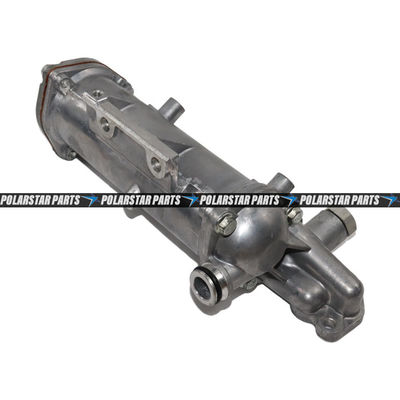

Mesin Mitsubishi 4d31 4D31T 4D32 Oil Cooler Assy Me014779 26410-41013 Excavator E70b
Deskripsi Produk
Aplikasi: Konstruksi / Industri / Pertanian / Genset / Kelautan / Penanganan
Model mesin: 4D31
Nama Merek: Bagian Polarstar
Ukuran: Ukuran OEM
Packing: Kantong plastik, Kotak, Karton
Tempat Asal: Buatan China atau Suku Cadang Asli
Garansi: Dalam 6 Bulan
Layanan OEM: Tersedia
Model peralatan yang kompatibel: MESIN 4D31-T Kobelco
Detail departemen suku cadang
| pos. | Bagian No | jumlah | Nama bagian | Komentar |
|---|---|---|---|---|
| 1-13. | VAME014778 | [1] | OIL COOLER OIL COOLER ASSY | OIL COOLER OIL COOLER ASSY |
| 1. | VAME014766 | [1] | ELEMEN | ELEMEN KOB, OIL COOLER |
| 2. | VAME014779 | [1] | SHELL, OIL COOLER | |
| 3. | VAME014777 | [1] | COVER, OIL COOLER RE | |
| 4. | VAME014757 | [1] | MENUTUPI | KOB COVER, OIL COOLER FR |
| 5. | VAME014715 | [1] | PAKING | KOB GASKET |
| 6. | VAME014772 | [2] | O-RING | KOB O-RING |
| 7. | VAMH035091 | [2] | O-RING | KOB O-RING 22 |
| 8. | VAMF140025 | [6] | BAUT | KOB BOLT, FLANGE 8 X 20 |
| 10. | VAME084527 | [1] | PENGGANTI TEKANAN KATUP | KOB VALVE Digantikan oleh nomor bagian: 240095A1 |
| 11. | VAME084526 | [1] | MUSIM SEMI | KOB SPRING |
| 12. | VAME014717 | [1] | SAYAP | KOB PLUG Digantikan oleh nomor bagian: 240099A1 |
| 13. | VAMH035044 | [1] | O-RING | KOB O-RING 18 Digantikan oleh nomor bagian: 240098A1 |
| 15. | VAMF520016 | [1] | O-RING | KOB O-RING 22.1 |
| 16. | VAMH035015 | [2] | O-RING | KOB O-RING 17 |
| 17. | VAMF140225 | [2] | BAUT | KOB BOLT, FLANGE 8 X 20 |
| 18. | VAMH000714 | [2] | BAUT | KOB BOLT, FLANGE 10 X 25 |
| 19. | VAME014780 | [1] | Isolator, O/C PANAS | |
| 20. | VAMF140221 | [3] | BAUT | KOB BOLT, FLANGE 8 X 12 |
| 30-34. | VAME014773 | [1] | KIT O-RING | KOB O-RING KIT |
| 30. | VAME014772 | [2] | O-RING | KOB O-RING |
| 31. | VAMH035091 | [2] | O-RING | KOB O-RING 22 |
| 32. | VAMH035044 | [1] | O-RING | KOB O-RING 18 Digantikan oleh nomor bagian: 240098A1 |
| 33. | VAMF520016 | [3] | O-RING | KOB O-RING 22.1 |
| 34. | VAMH035015 | [2] | O-RING | KOB O-RING 17 |
